Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery

Brand Name : KACISE

Model Number : K-2QJJ10A/10C/10D

Place of Origin : Shaanxi, China (Mainland)

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5 working days after payment

Packaging Details : carton or customers requests available

Certification : CE

Nonlinear : 0.5%F.S.

Resolution (°/s) : 0.05°

Bandwidth : 5Hz

Start-up time (ms) : ＜1s

Temperature (°C) : -40℃~+70℃

Storage Temperature : -40℃~+125℃

Contact Now

Low Power Consumption Analog Output Inclinometer Sensor For Engineering Machinery
Features
  • K-2QJJ100C/100D Waterproof shell
  • K-2QJJ100C low power consumption
  • analog output
Specification
Type K-2QJJ100A K-2QJJ100B K-2QJJ100C K-2QJJ100D K-2QJJ100E K-2QJJ100F
Electric character
Input voltage 10~30VDC 3.3VDC 10~30VDC 10~30 VDC
Input current ＜20mA 4mA ＜60mA ＜20mA
Output mode 0.5～4.5V 0.1～2.4V 4～20mA RS485(@9600bps@25Hz) RS232(@9600bps@25Hz) pulse output
Performance index
Range ±10° ±30°
Nonlinear (%F.S.) 0.5%F.S. 0.5%FS
Resolution (°/s) 0.05° 0.05°
Bias 2.5±0.1V 1.25±0.01V 12±0.1mA 0.1°
Bandwidth 5Hz 5Hz
Start-up time (ms) ＜1s ＜1s
Protection grade IP67 IP65 IP67 IP65
Environmental characteristics
Compensated Temperatures N.A. -40℃~40℃ N.A.
Temperature (°C) -40℃~+70℃ -40℃~+70℃
Storage Temperature -40℃~+125℃ -40℃~+125℃
Physical Characteristics
Weight (g) ＜500g ＜50g ＜500g ＜500g
Dimensions 82X58X43mm 38X38X20mm 82X58X43mm 48X38X18mm 82X58X43mm

Note: Range can choose ±20°,±40°,±60°,±75°.

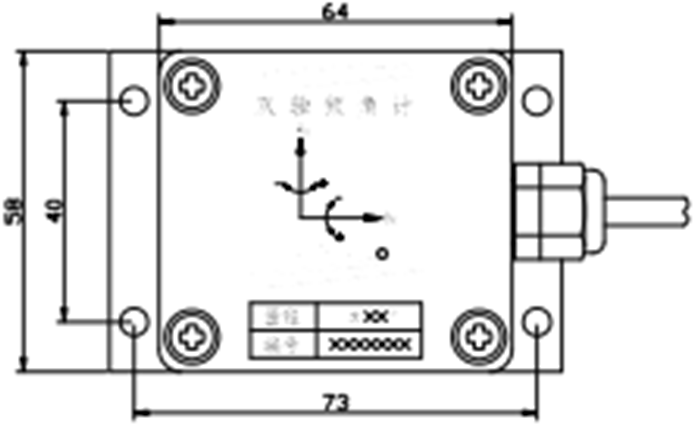

Dimension

Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
