Product Description

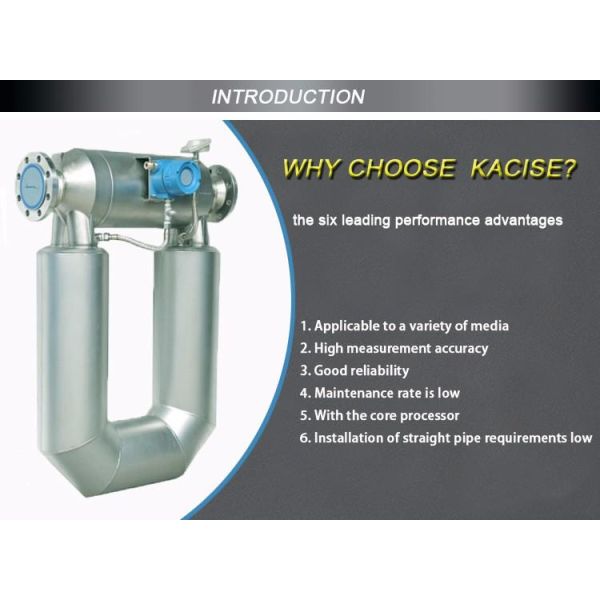

petroleum mass flow meter Description:
petroleum mass flow meter are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. KMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
petroleum mass flow meter Features:
- Unchallengeable KMF performance on liquid mass flow, volume flow, and density measurement
- Unique design delivers unparalleled measurement sensitivity and stability
- Guarantees consistent, reliable performance over the widest flow range
- Designed to minimize process, mounting, and environmental effect
Dimensions of large - scale instrument
| Model | Weld Neck Flanges-ANSI B16.5 | A | B | C | E | F | W | G | K | d | D |
|---|
| DN | LB |
|---|
| KMF-1-6c | 100 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 19.1 | 190.5 | 157.2 | 228.6 |
| KMF-1-6CD | 125 | 150 | 670 | 510 | 740 | 858 | 1092 | 260 | 22.4 | 215.9 | 185.7 | 254 |
| KMF-1-6D | 150 | 150 | 860 | 670 | 950 | 1130 | 1370 | 280 | 22.4 | 241.3 | 215.9 | 279.4 |
Applied Range
Company Show
FAQ
- 1.we can produce acoording to your requirments,OEM,ODM
- 2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.
- 3.after payment we can deliver to you soon
- 4.we have ISO9001 certification and patent certification.
