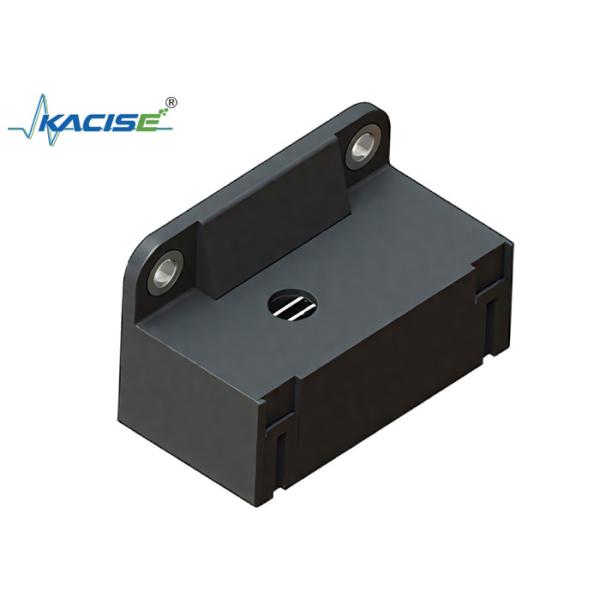

KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement

Brand Name : KACISE

Model Number : KGD-ATRS-314

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Data Refresh : ≤1s

Output Method : CAN2.0

Designed Service Life : 10 years

Operating Conditions : -40°C - +85°C; 0 - 99%RH (non - condensing)

Storage Conditions : -40°C - +95°C; 0 - 99%RH (non - condensing)

Working Voltage : 60kPa - 120kPa

Contact Now

KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement
Product Attributes
Attribute Value
Data Refresh ≤1s
Output Method CAN2.0
Designed Service Life 10 years
Operating Conditions -40°C - +85°C; 0 - 99%RH (non-condensing)
Storage Conditions -40°C - +95°C; 0 - 99%RH (non-condensing)
Working Voltage 60kPa - 120kPa
Product Description
Smoke Sensor KGD - ATRS - 314 for Measuring Battery Dust Concentration and Temperature
Product Introduction
The KGD - ATRS - 314 smoke sensor module can effectively monitor indicators such as dust concentration and temperature released before the triggering of battery thermal runaway, and transmit the measurement signals to the BMS through CAN communication. This solution features accurate measurement, fast response time, low cross-interference, low power consumption, long service life and high reliability.
KGD ATRS 314 Smoke Sensor For Precise Battery Dust Concentration And Temperature Measurement
Product Features
  • The module adopts a vehicle-grade mature circuit design, enabling it to adapt to harsh in-vehicle environments.
  • CAN2.0B real-time communication, with a protection level up to IP40.
  • For PM (particulate matter) measurement, it uses an infrared light scattering technology with independent intellectual property rights. The measuring range can reach 10000ug/m³, and the measurement accuracy is as high as 15%, enabling accurate and fast real-time monitoring. It has a low-power mode and a deep sleep mode, realizing multi-working-mode measurement of the sensor.
Technical Parameters
Items Details
Detection Principle Particulate matter: Infrared scattering；Temperature: NTC thermistor
Detection Types Particulate matter (PM), temperature (T)
Detection Range PM: 1 - 10000ug/mATRS
T: -40°C - 85°C
Resolution PM: 1ug/mATRS
T: 0.1°C
Detection Accuracy PM: ±15ug/mATRS for ≤100ug/mATRS, ±15% of the reading for >100ug/mATRS (TSI8530 standard source, 8mg , smoking rate 1L/min)
Temperature T: ±2°C
Data Refresh ≤1s
Output Method CAN2.0
Designed Service Life 10 years
Operating Conditions -40°C - +85°C; 0 - 99%RH (non-condensing)
Storage Conditions -40°C - +95°C; 0 - 99%RH (non-condensing)
Working Voltage 60kPa - 120kPa
Supply Voltage 6 - 16VDC, standard voltage +12VDC
Average Working Current Normal working mode: ≤30mA, @+12VDC (sensor continuous working)
Low-power mode: ≤500uA, @+12VDC (sensor intermittent working, detection once every 12.2s)
Deep sleep mode: ≤50uA, @+12VDC (sensor enters deep sleep, stops working, needs external signal to wake up and trigger)
Quiescent Current ≤100uA (deep sleep (stop) mode)
