IFM PQ3834 IO-Link Pressure Sensor with High Accuracy and Robust Design for Industrial Applications

Brand Name : IFM

Highlight : IFM Differential Pressure Gauge, PQ3834 IFM Pressure Sensor, Pneumatic IFM Pressure Sensor

Theory : Pressure Sensor For Pneumatics

Type : Pressure Sensor

Long-term Stability [% Of The Span : 8

Certification : CE

Description : Melt Pressure Transducer

Model Number : PQ3834

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Contact Now

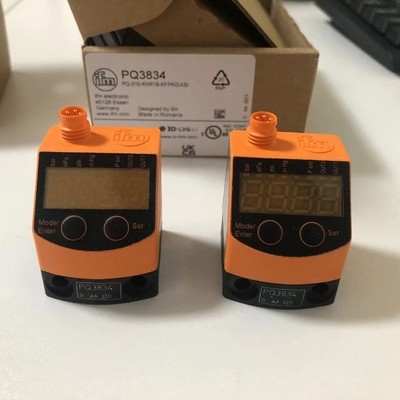

IFM PQ3834 Pressure Sensor with IO-Link

The IFM PQ3834 is an advanced pressure sensor designed for precise monitoring and control in pneumatic and industrial systems. With a measuring range of -1 to 10 bar (-15 to 145 psi), it offers configurable outputs and exceptional accuracy for reliable performance in applications requiring high precision and durability.

IFM PQ3834 IO-Link Pressure Sensor with High Accuracy and Robust Design for Industrial Applications IFM PQ3834 IO-Link Pressure Sensor with High Accuracy and Robust Design for Industrial Applications
Key Features
Configurable Output Options
  • 1 digital output (PNP, configurable NO/NC)
  • 1 analog output (4-20 mA, 500 Ω max load)
  • IO-Link communication (COM2, 38.4 kBaud)
Precision Measurement
  • Measuring range: -1 to 10 bar with 0.05 bar set step resolution
  • High accuracy: <±0.5% switching point accuracy
  • Repetition accuracy: <±0.1%
  • Minimal temperature coefficients (0.2%/10 K for zero and span)
Rapid Response
  • Reaction time <6 ms for real-time pressure monitoring
  • Programmable delay (0-5 s) for application-specific requirements
Robust Design
  • IP65 protection against dust and water jets
  • Impact resistance: 50 g (11 ms)
  • Vibration resistance: 20 g (10-2000 Hz)
  • MTTF 437 years for long-term reliability
User-Friendly Interface
  • 4-digit alphanumeric display
  • Selectable units (bar, kPa, psi, inHg)
  • 4 green LEDs for on/off status
  • 1 yellow LED for function indication
Technical Specifications
Material Compatibility Wetted parts: Brass, FKM, Silicon (coating), PBT. Suitable for Group 2 fluids (Group 1 optional)
Electrical Safety Short-circuit protection (pulse type). Operating voltage: 18-32 V DC with reverse polarity protection
Housing Robust PBT housing with IP65 protection
