Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Name: Singlechannel Infrared CO Sensor KGDCM103 with 4005000ppm Detection Range 50ppm 8 Accuracy and 30s Poweron Stabilization
Brand: KACISE
Price: 1 USD

Brand Name : KACISE

Model Number : KGD-CM-103

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Detection Range : 400 - 5000ppm

Detection Accuracy : ±(50ppm + 8% of the reading)

Power-on Stabilization Time : 30s

Data Refresh Frequency : 1s

Operating Conditions : -10°C to 50°C, below 0 - 95%RH (non-condensing)

Average Operating Current : ≤45mA @（5V）

Contact Now

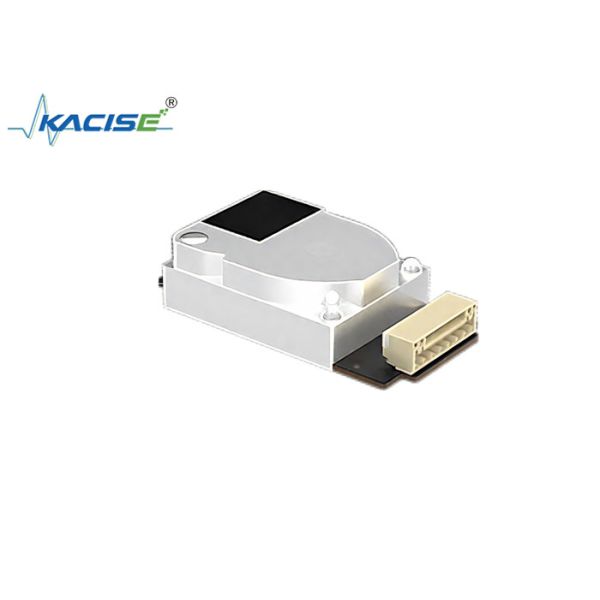

Single-channel Infrared CO₂ Sensor KGD - CM - 103

Product Introduction

The single-channel infrared CO₂ sensor KGD - CM - 103 is a CO₂ sensor based on the principle of non-dispersive infrared absorption, which can monitor and display the CO₂ concentration in real time. This sensor features high accuracy, superior performance, a compact structure, and easy installation. It is suitable for applications such as indoor CO₂ concentration detection, air quality control, and energy-saving control. Examples include fresh air systems, air conditioning control, air quality monitors, and plant cultivation.

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Product Features

NDIR core technology.
Long service life, automatic calibration, and maintenance-free.
Matrix correction within the full range of temperature.
Compact product structure, easy to install.

Technical Parameters

Detection Range	400 - 5000ppm
Detection Accuracy	±(50ppm + 8% of the reading)
Power-on Stabilization Time	30s
Data Refresh Frequency	1s
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-40°C to 70°C, below 0 - 95%RH (non-condensing)
Average Operating Current	≤45mA @(5V)
Communication Interface	① UART_TTL(3.3V) (Default) ② IIC(3.3V) (Reserved) ③ PWM(3.3V) (Reserved)
Product Dimensions	L33W19.7H11.6(mm) (H = Shell + Plastic Base)
